Why Choose GC200 Jaw Crusher for Mining Operations?

In the fields of mining crushing and large-scale construction material production, choosing a stable, efficient, and high-performance primary crusher is crucial to the success of any project. Among the heavy-duty crushers developed by Leimeng, the GC200 Jaw Crusher stands out with its superior handling capacity, rugged structure, and wide adaptability. It has become the preferred choice for professionals in the mining, metallurgy, cement, and construction industries worldwide.

This article provides a comprehensive analysis of the GC200 jaw crusher from multiple angles—including structural design, performance features, application scenarios, technical specifications, and comparative advantages—helping you make a well-informed procurement decision.

What Is the GC200 Jaw Crusher?

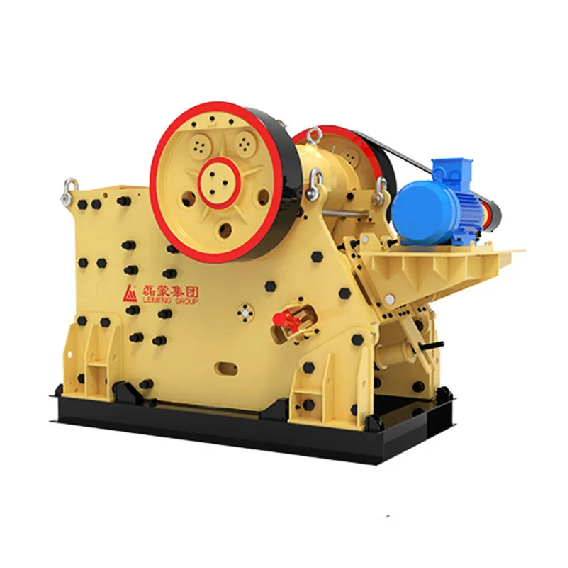

The GC200 Jaw Crusher is a high-performance heavy-duty crusher developed by Leimeng, specifically engineered to meet high-capacity and high-intensity crushing requirements. The "C" in its name stands for "Crusher," while "200" refers to its impressive feed opening width of 2000mm, allowing it to process extremely large blocks of ore and rock materials with ease.

With its customizable configuration options, the GC200 can be tailored to meet specific operational needs, ensuring stable and efficient performance even in demanding conditions. Whether handling hard granite, basalt, or large volumes of iron ore or copper ore, the GC200 consistently delivers exceptional crushing performance.



Core Technical Specifications of the GC200 Jaw Crusher

Thanks to its outstanding technical specifications, the Leimeng GC200 Jaw Crusher sets itself apart in the market. Below is a detailed breakdown of its core parameters:

Parameter	Specification
Feed Length	2000mm
Feed Width	1500mm
Max Feed Size	＜1200mm
Discharge Adjustment Range	175–300mm
Final Output Size	≤450mm
Capacity	760–1590t/h
Bearing Brand	Top-tier Chinese brand
Motor Power	400KW
Voltage	380V
Motor Speed	990rpm
Protection Level	IP54
Insulation Class	Class F
Mounting Method	B3 Type
Frame Material	Cast steel, welded steel plates
Wear-resistant Material	ZGMn13-4 manganese steel
Drive Type	Belt drive
Lubrication System	Grease lubrication
Dimensions	6575×3950×5040mm
Weight	139 tons



These specifications reflect the jaw crusher and provide the high performance and efficiency needed in industries such as ore processing, construction waste recycling, and metal smelting. Moreover, the specifications can be tailored to meet specific operational conditions, offering exceptional customization flexibility.

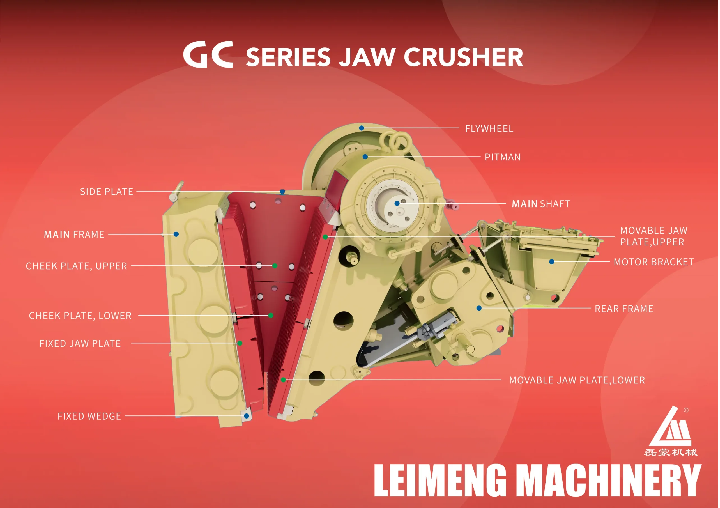

Structural Features of the GC200 Jaw Crusher

The GC200 jaw crusher demonstrates expert-level design in its structural configuration, tailored specifically for heavy-duty mining applications. Its components feature a modular, reinforced design, which enhances overall strength and ease of maintenance.

1. High-Strength Welded Frame

The frame is constructed using high-strength welded steel plates, treated to relieve internal stress. This design significantly reduces the risk of cracking or deformation caused by prolonged vibration during operation.

2. Thickened Jaw Plates

Both the movable and fixed jaw plates are made from high-manganese wear-resistant steel, with additional thickness to withstand hard materials like granite, basalt, and iron ore—commonly found in regions such as Russia.

3. Optimized Crushing Chamber Angle

The V-shaped crushing chamber and optimized bite angle ensure smooth material entry and more complete crushing. This not only enhances the particle shape of the final product but also reduces energy consumption and wear.

4. Large-Diameter Flywheels and High-Powered Pulleys

Equipped with large flywheels, the GC200 balances impact loads and maintains operational efficiency. The durable pulleys ensure consistent power output, even under extreme working conditions.



Application Scenarios of the GC200 Jaw Crusher

With its robust performance, the GC200 jaw crusher finds applications across numerous industrial sectors, demonstrating outstanding adaptability and efficiency in the following areas:

50. Metal Mines: Ideal for the primary crushing of iron ore, copper ore, gold ore, and other metallic minerals.
50. Non-Metal Mines: Suitable for processing materials like limestone, granite, and basalt—perfect for aggregates and cement raw materials.
50. Construction Waste Processing: Efficiently handles large concrete blocks, bricks, and other construction debris for recycling.
50. Cement and Building Materials: Serves as the core crushing equipment in raw material lines, boosting overall productivity and product quality.

Competitive Advantages Over Traditional Jaw Crushers

When compared to traditional jaw crushers, the GC200 offers significant benefits:

Comparison Metric	GC200 Jaw Crusher	Traditional Jaw Crusher
Feed Capacity	Up to 2000mm, handles large materials	Typically <1200mm, limited feed
Structural Integrity	Integrated heavy-duty welded frame	Assembled frame, prone to cracks
Wear Part Longevity	High-manganese custom materials	Standard parts, frequent changes
Smart Features	Central lubrication & monitoring	Manual oiling, no monitoring
Energy Efficiency	10%+ lower energy per ton output	Higher operating costs

The GC200 is more than just a high-efficiency crusher—it's a core driver of value for large-scale mining operations. Its stability, power, and smart features deliver unmatched performance, even under harsh conditions and continuous workloads.



If you're looking for a reliable, high-capacity jaw crusher that offers superior durability, intelligence, and customization, the GC200 is undoubtedly a smart choice. It meets the stringent requirements of modern mining and construction environments while optimizing operational costs.

Contact us today to learn more about the GC200 Jaw Crusher’s specifications, capabilities, and pricing, and discover how it can become the powerhouse of your production line—enhancing your competitive edge in the market.
